48v 200Ah
    Publish time 2022-09-05 18:16
48v 200Ah
Product Parameters
New product 48v 10kw energy storage solar system 48v 200ah lithium solar battery lifepo4
Specification
Parameter
LM48200

Nominal
Voltage
51.2V
Capacity
210Ah

Physical
Dimension
482.6*540.2*221.5mm
Weight
85KG


Electrical
Charge Voltage
58.4V
Discharge Voltage
40V
Constant charge Current
100A
Constant Discharge Current
100A
Peak discharge current
200A

Others
Working Temperature
-20-65℃
Storage Temperature
0-45℃
Cycle Life
>4000 Cycles

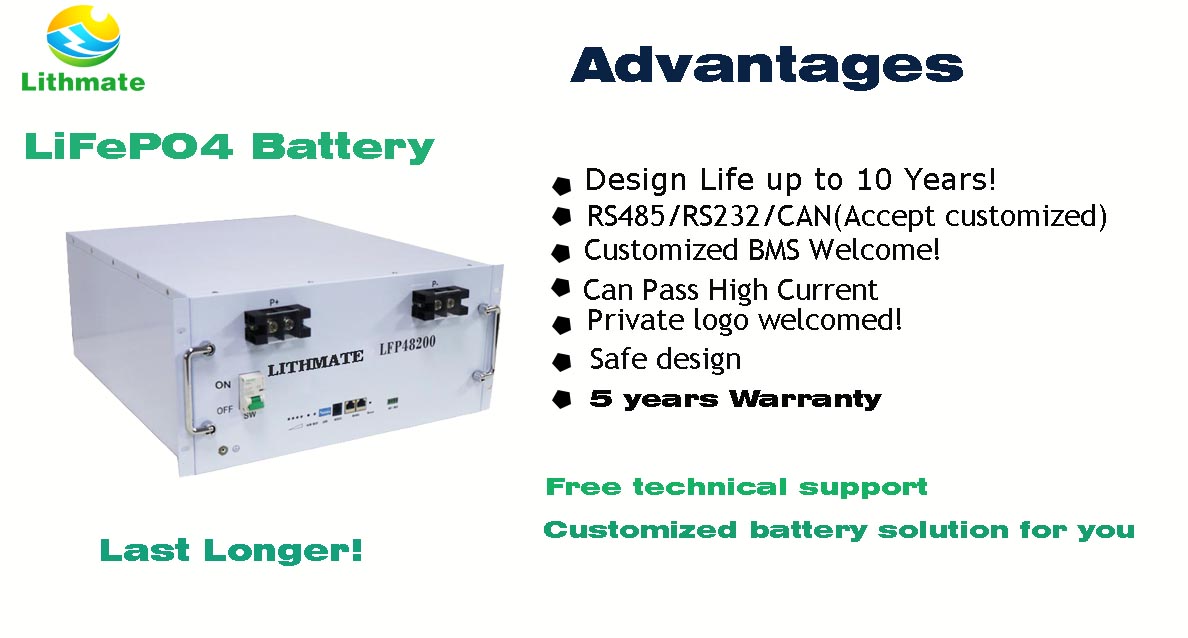

Products Advantages
For other Voltage and Capacity, pls click here, we not only can provide standard battery solution, but also customized solution

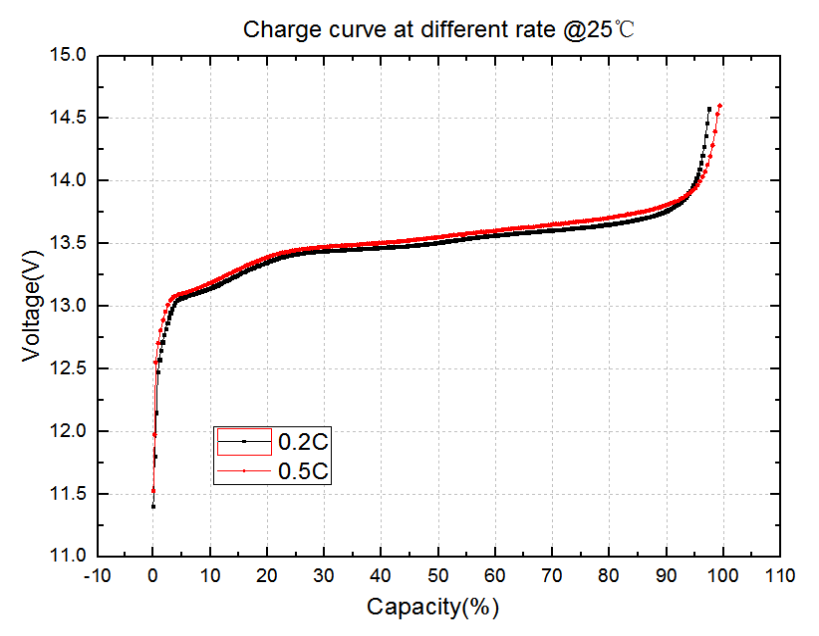

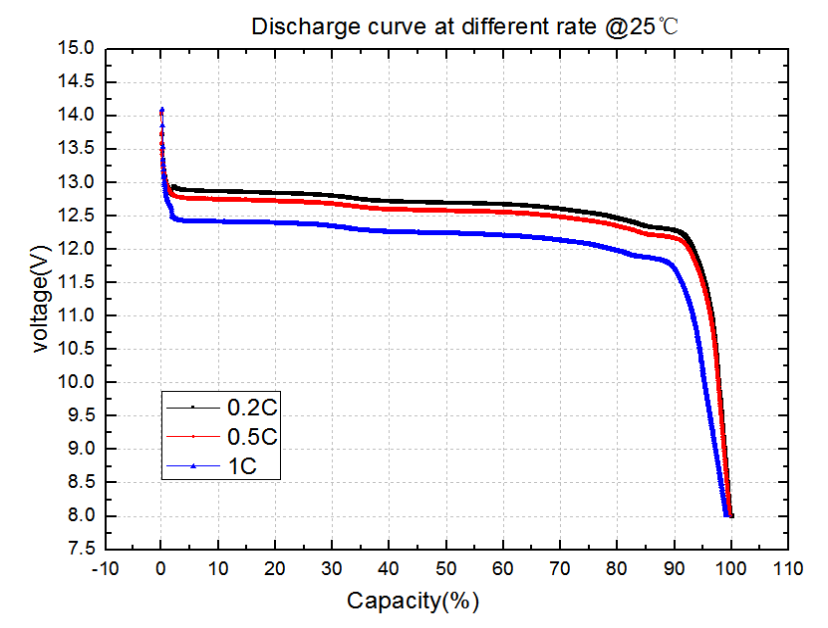

Cycle Curve
1. DOD can be 100%.2. No obvious voltage drop down from 10%-90%

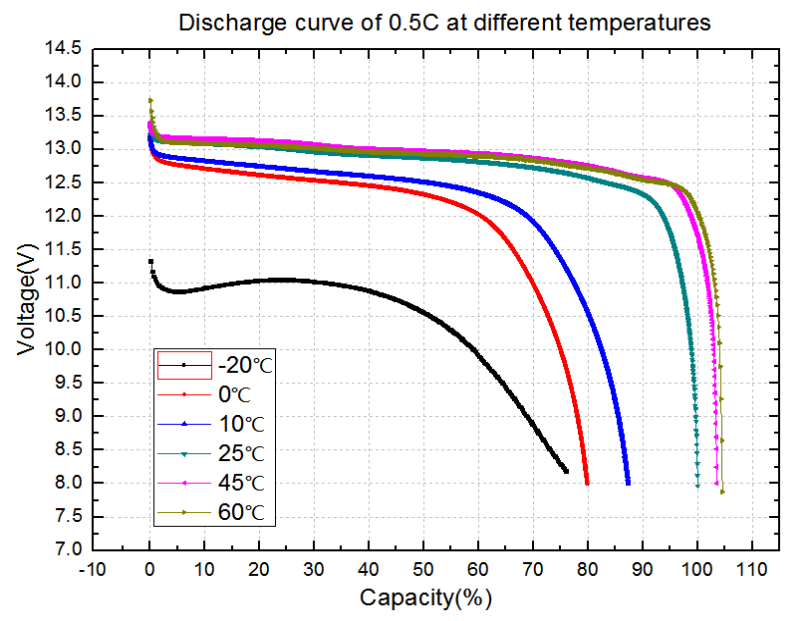

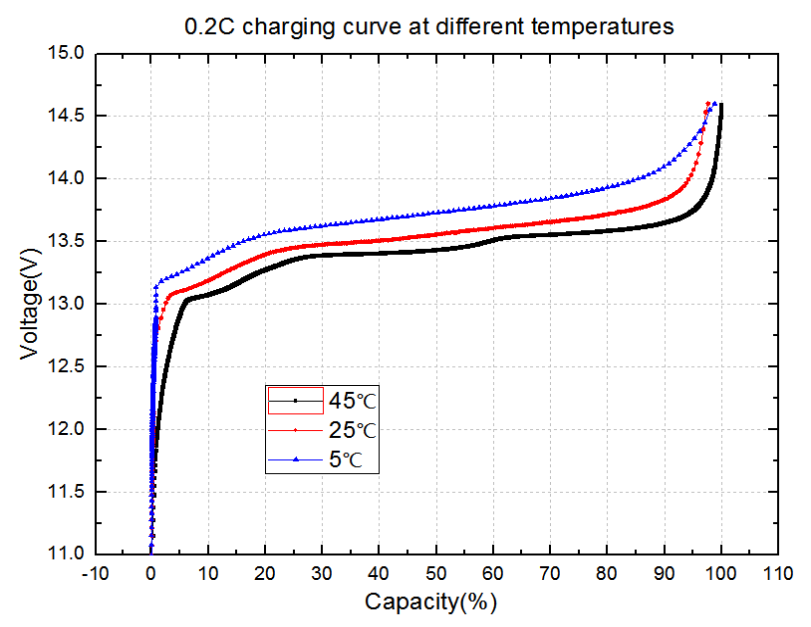

1. Good high temperature performance.                  2. Can be workable at -20℃
Quick charge supported
Good high/Low temperature performance

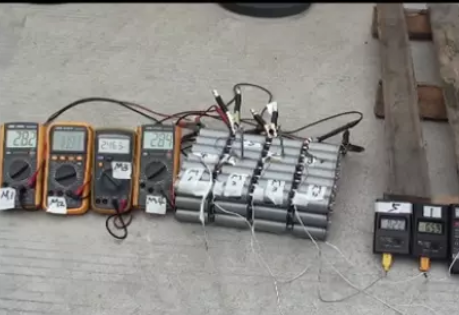

Pass Safety Tests
Crush Test
Dropping Test
Acupuncture Test

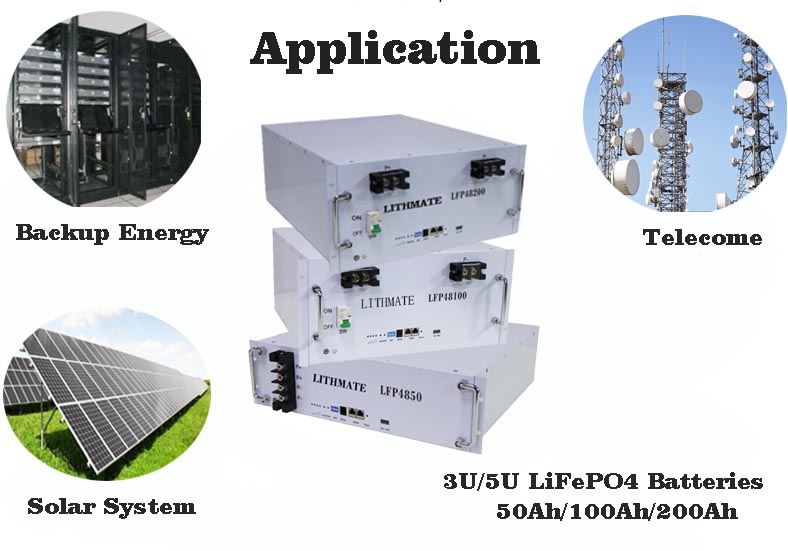

Application
